Chi tiết sản phẩm

Created with Pixso. Nhà Created with Pixso. các sản phẩm Created with Pixso.
máy tính công nghiệp
Created with Pixso. Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer

Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer

Tên thương hiệu: HLY
Số mẫu: H31G
MOQ: 2
Thông tin chi tiết
Nguồn gốc:
Quảng Đông, Trung Quốc
Bộ xử lý lõi:
Lõi kép
Mô hình CPU:
Intel Core i5-5200U
Tốc độ CPU:
2,70 GHz
Loại ram:
DDR3L 1333/1600 MHz
Khe ram:
1 x DDR3L
Bộ nhớ video:
2 GB
Card đồ họa:
Đồ họa HD Intel 5500
Hỗ trợ SSD:
1x mSATA + 1x SSD 2,5"
Hỗ trợ WiFi:
mPCIe (nửa kích thước) 300M
Loại LAN:
Gigabit LAN
Cổng USB:
6x USB3.0
Đầu ra video:
1x VGA, 1x HDMI
Đầu vào năng lượng:
12V, 5A
Nhiệt độ hoạt động:
-20 ° C đến 80 ° C.
Kích thước:
180x128x55mm
Làm nổi bật:

Intel Core i5-5200U Processor Industrial Mini PC

,

DDR3L RAM Barebone System Computer

,

mSATA SSD Industrial Mini PC

Mô tả sản phẩm
Compact Firewall Motherboard for pfSense - Barebone System
The H31G Mini PC is a powerful industrial-grade computer featuring an Intel Core i5-5200U processor with robust performance for networking applications. Its compact, fanless design makes it ideal for firewall and pfSense implementations while maintaining reliable operation in various environments.
Key Features
  • Intel Core i5-5200U Processor (3M Cache, up to 2.70 GHz) - also supports i7-5500U
  • Intel HD Graphics 5500 for excellent display performance
  • 1 x DDR3L RAM slot (Low voltage 1.35V) supporting 4GB, 8GB, or 16GB configurations
  • Dual storage support: mSATA and 2.5" SATA
  • mPCIe half-size slot for 300M WiFi module (optional)
  • Gigabit LAN for high-speed networking
  • Fanless cooling system for silent operation
Configuration Options
RAM Options No RAM 2GB 4GB 8GB
Storage Options No SSD 30GB SSD 60GB SSD 120GB SSD 250GB SSD 500GB SSD 1TB HDD
Note: Base configuration (no RAM/no SSD) does not include WiFi module.
Technical Specifications
General Brand: HLY
Type: Mini PC
Processor: Intel Core i5-5200U (3M Cache, up to 2.70 GHz)
Cores: 2
GPU: Intel HD Graphics 5500
RAM Slot: 1 x DDR3L (1.35V)
Storage: Supports mSATA and 2.5" SSD/HDD
WiFi: mPCIe half-size (optional)
Connectivity LAN: RTL 8111EL 1000 BaseT
Audio: High Definition Audio Controller
WiFi: 802.11 b/g/n (dual antenna)
OS Support: Windows 10/8/7, Linux
Color: Black (custom colors available)
I/O Ports 4 x USB 3.0
1 x VGA
1 x HDMI
2 x LAN
1 x MIC/SPK
1 x Power Switch
2 x COM (RS232)
Power Type: External Power Adapter
Input: 12V, 5A
Environment Operating Temp: -20°C to 80°C
Storage Temp: 0°C to 80°C
Humidity: 10%-90% (non-condensing)
Dimensions 180 x 128 x 55mm

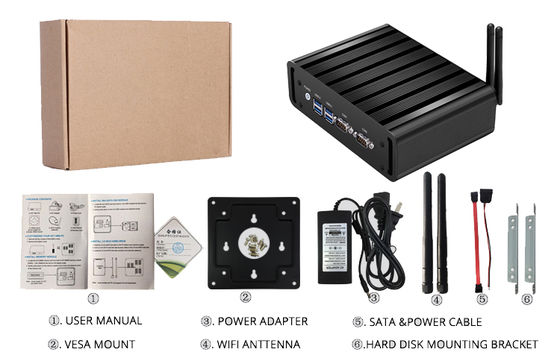

Package Contents
  • 1 x Mini PC
  • 1 x User manual
  • 1 x VESA mount
  • 1 x WiFi antenna (except barebone configuration)
  • 1 x Power cable and SATA cable (where applicable)
  • 1 x Hard disk mounting bracket (where applicable)
Product Images

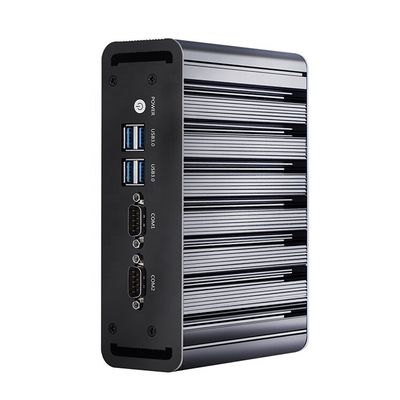

Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 0

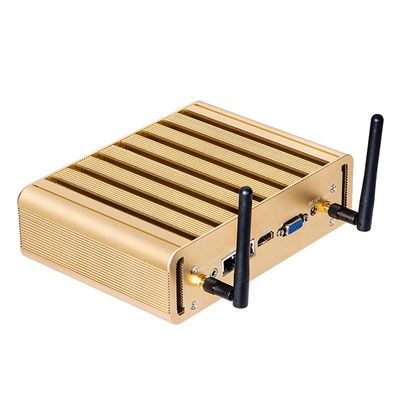

Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 1
Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 2

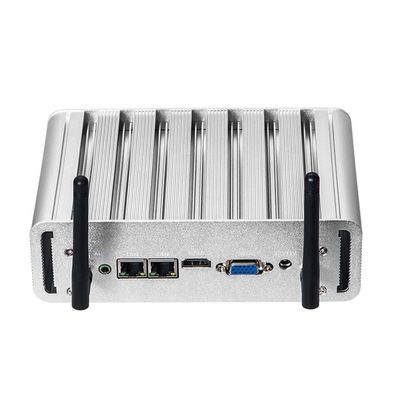

Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 3
Packaging & Shipping
Carton Dimensions 24x20x12cm 24x23x20cm 55x24x20cm 55x24x36cm
Quantity 1 unit 2 units 5 units 10 units
Weight 2.5kg 5kg 12.5kg 25kg
Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 4
Shipping Methods
DHL 3-5 days delivery, high reliability, suitable for South America/Europe
FedEx 3-5 days delivery, good service, suitable for South America/Europe/Southeast Asia
Aramex 6-15 days delivery, ideal for Middle East destinations
Post Economical option with slower delivery times
Custom Other shipping methods available upon request
Power Adapter Options
Industrial Mini PC with Intel Core i5-5200U Processor DDR3L RAM and mSATA SSD Barebone System Computer 5
