| Tên thương hiệu: | Helor PC |
| Số mẫu: | X39g Intel ADL-N N100 |
| MOQ: | 1 mảnh |
| giá bán: | $196.7-$308.6, Negotiable |
| Thời gian giao hàng: | 7-15 ngày làm việc |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
This industrial mini PC, powered by the Intel N100 (Intel ADL - N series) and equipped with a DDR5 SODIMM slot (up to 16GB), ensures smooth performance. It features 2 x 2.5GbE RJ45 ports for network connectivity, a variety of I/O interfaces (including USB, COM, HDMI, VGA, GPIO, etc.), storage options like NVMe and SATA, and expansion slots for WiFi, Bluetooth, 3G, and 4G. It supports Windows® 10/11 and Linux. Constructed from aluminum, it has a compact size (180×120×54 mm, 1.0 Kg) and operates within wide temperature and humidity ranges, making it suitable for challenging industrial environments.
| Processor | Intel ADL-N N100 |
| Memory | DDR5 SODIMM x1, Max 16GB |
| Storage | 1 x NVME (PCIe x2),1 x 7Pin SATA |
| Ethernet | 2 x 2.5GbE RJ45 Intel i226V |
| Power Input | 12V - 19V |
| Operating Temperature | - 20℃ to + 60℃ |
| Storage temp | - 30℃ to + 70℃ |
The Intel N100, part of the Intel ADL-N Series Processor, powers this industrial mini PC. It features 4 cores and 4 threads, delivering robust performance and stability. With a clock speed of 0.8 GHz and a power consumption of only 6W, it offers an ideal balance of performance and energy efficiency, meeting the high demands of industrial applications.
Intel N100 with Dual LAN Six COM DDR5 Industrial Mini PC Application:
The mini PC with Intel N100 is versatile, suitable for various settings including industrial sites, entertainment venues, commercial establishments, public areas, financial institutions, surveillance systems, express pickup lockers, and digital signage, driving operations across these sectors.

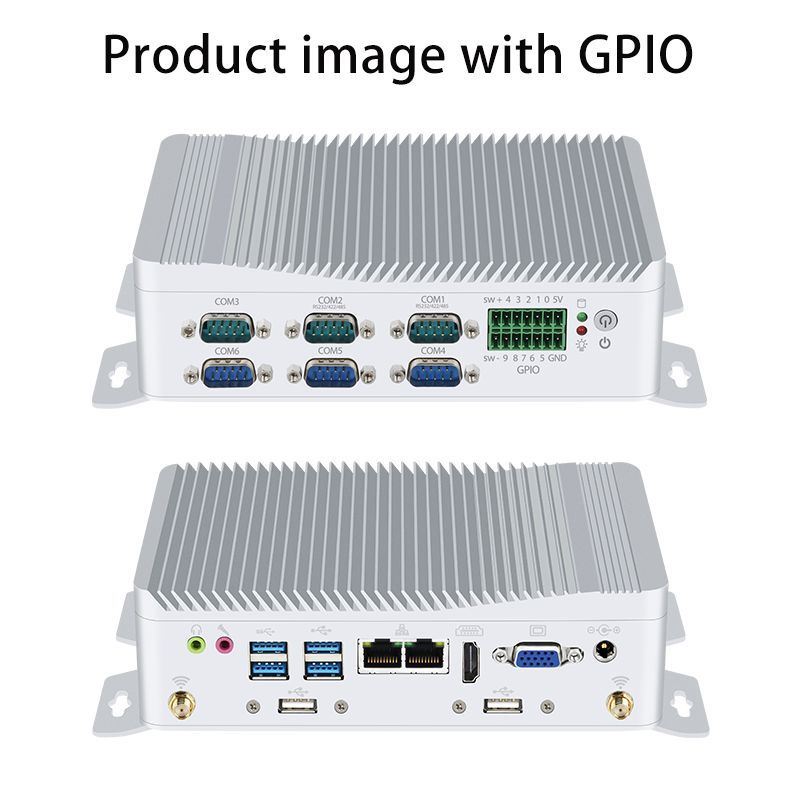

This industrial mini PC features a wide range of interfaces to meet various industrial requirements. One side includes six COM ports (RS232/422/485 and RS232) for serial communication with multiple devices, a GPIO port for custom input/output, and a power switch for easy operation. The other side offers audio input/output interfaces, USB 3.0 and USB 2.0 ports for connecting multiple USB devices, and a gigabit Ethernet port for high-speed network connectivity. Additionally, it has an HD interface, a video interface for video output, and a power interface to supply power to the device.
Băng hình
Băng hình
Băng hình
Băng hình
Băng hình
Băng hình
|
| Tên thương hiệu: | Helor PC |
| Số mẫu: | X39g Intel ADL-N N100 |
| MOQ: | 1 mảnh |
| giá bán: | $196.7-$308.6, Negotiable |
| Chi tiết bao bì: | Hộp carton |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
This industrial mini PC, powered by the Intel N100 (Intel ADL - N series) and equipped with a DDR5 SODIMM slot (up to 16GB), ensures smooth performance. It features 2 x 2.5GbE RJ45 ports for network connectivity, a variety of I/O interfaces (including USB, COM, HDMI, VGA, GPIO, etc.), storage options like NVMe and SATA, and expansion slots for WiFi, Bluetooth, 3G, and 4G. It supports Windows® 10/11 and Linux. Constructed from aluminum, it has a compact size (180×120×54 mm, 1.0 Kg) and operates within wide temperature and humidity ranges, making it suitable for challenging industrial environments.
| Processor | Intel ADL-N N100 |
| Memory | DDR5 SODIMM x1, Max 16GB |
| Storage | 1 x NVME (PCIe x2),1 x 7Pin SATA |
| Ethernet | 2 x 2.5GbE RJ45 Intel i226V |
| Power Input | 12V - 19V |
| Operating Temperature | - 20℃ to + 60℃ |
| Storage temp | - 30℃ to + 70℃ |
The Intel N100, part of the Intel ADL-N Series Processor, powers this industrial mini PC. It features 4 cores and 4 threads, delivering robust performance and stability. With a clock speed of 0.8 GHz and a power consumption of only 6W, it offers an ideal balance of performance and energy efficiency, meeting the high demands of industrial applications.
Intel N100 with Dual LAN Six COM DDR5 Industrial Mini PC Application:
The mini PC with Intel N100 is versatile, suitable for various settings including industrial sites, entertainment venues, commercial establishments, public areas, financial institutions, surveillance systems, express pickup lockers, and digital signage, driving operations across these sectors.
This industrial mini PC features a wide range of interfaces to meet various industrial requirements. One side includes six COM ports (RS232/422/485 and RS232) for serial communication with multiple devices, a GPIO port for custom input/output, and a power switch for easy operation. The other side offers audio input/output interfaces, USB 3.0 and USB 2.0 ports for connecting multiple USB devices, and a gigabit Ethernet port for high-speed network connectivity. Additionally, it has an HD interface, a video interface for video output, and a power interface to supply power to the device.
