| Tên thương hiệu: | Helor PC |
| Số mẫu: | X103 RK3576 |
| MOQ: | 1 mảnh |
| giá bán: | $50-$230, Negotiable |
| Thời gian giao hàng: | 7-15 ngày làm việc |
| Điều khoản thanh toán: | T/T, L/C, D/A, D/P, Western Union, Moneygram |

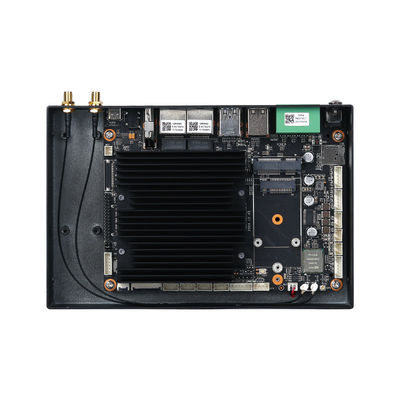

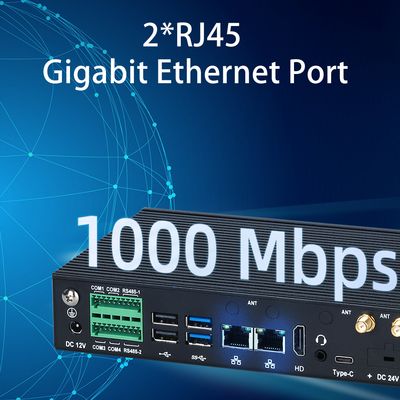

This industrial mini PC features the ARM RK3576 processor (4 cores: Cortex-A72@2.2GHz + Cortex-A53), delivering stable and efficient performance for industrial control and data processing tasks. It includes an ARM Mali-G52 MC3 GPU (supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1) for smooth graphics, and a 6TOPS INT8 NPU for AI-related industrial applications. Memory options include LPDDR5 RAM (4GB/8GB/16GB), eMMC flash (4GB - 128GB), and a UFS2.0-compatible M.2 slot (2280 PCIe NVMe/mSATA SSD). It runs Debian 12 for stability. Networking capabilities include 2 Gigabit RJ45 Ethernet ports, 2.4G/5G dual-band WiFi 5, and Bluetooth 5.0. Optional connectivity includes 4G (Mini PCIe, LTE/LTE2.0), 5G (M.2, 5G/4G, USB3.0), and BOS/GPS/Beidou. The device offers a variety of interfaces: HDMI 2.1 (4K@120Hz), EDP (4K@60Hz, DP/HDMI), LVDS (1920x1080), MIPI DSI/CSI, and audio jacks for diverse industrial use connections.
| GPU | RK3576 Quad-core Cortex-A72@2.2GHz + Quad-core Cortex-A53 |
| CPU | ARM Mali-G52 MC3, supporting OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| NPU | 6TOPS INT8, supporting INT4/INT8/INT16/FP16/BF16/TF32 |
| Operating humidity | 10% ~ 90%, no condensation |
| Suitable Temperature | Working temperature: -10℃ ~ +60℃; Storage temperature: -30℃ ~ +70℃; |
This industrial mini PC is powered by the ARM RK3576 processor, an 8-core chip featuring four Cortex-A72 cores at 2.2GHz and four Cortex-A53 cores. Constructed using an 8nm process, it offers a balance of high performance and low power consumption, making it perfect for industrial automation and edge computing applications. The integrated ARM Mali-G52 MC3 GPU supports OpenGL ES, OpenCL, and Vulkan standards, enabling efficient handling of industrial HMI displays and basic visual analysis tasks.
The ARM DDR5 industrial mini PC serves multiple fields: • Industrial Premises: Enables machinery control, production management, and efficiency boosts.
• Entertainment Venues: Powers displays and gaming systems for immersive experiences.
• Commercial Institutions: Supports POS, office tasks, and data-driven operations.
• Public Places: Runs info displays for guidance and resource access.
• Financial Institutions: Secures transactions and manages data.
• Monitoring Systems: Processes real-time video for anomaly detection.
• Express Lockers: Manages package storage/retrieval to streamline deliveries.
• Digital Signage: Drives displays to deliver ads and info in public spaces.

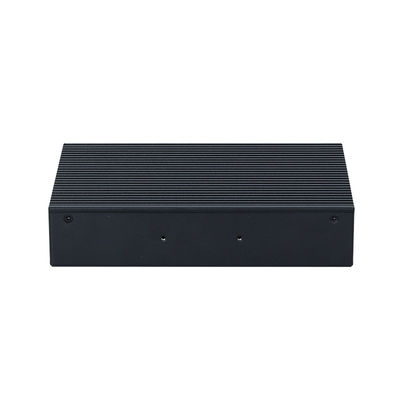

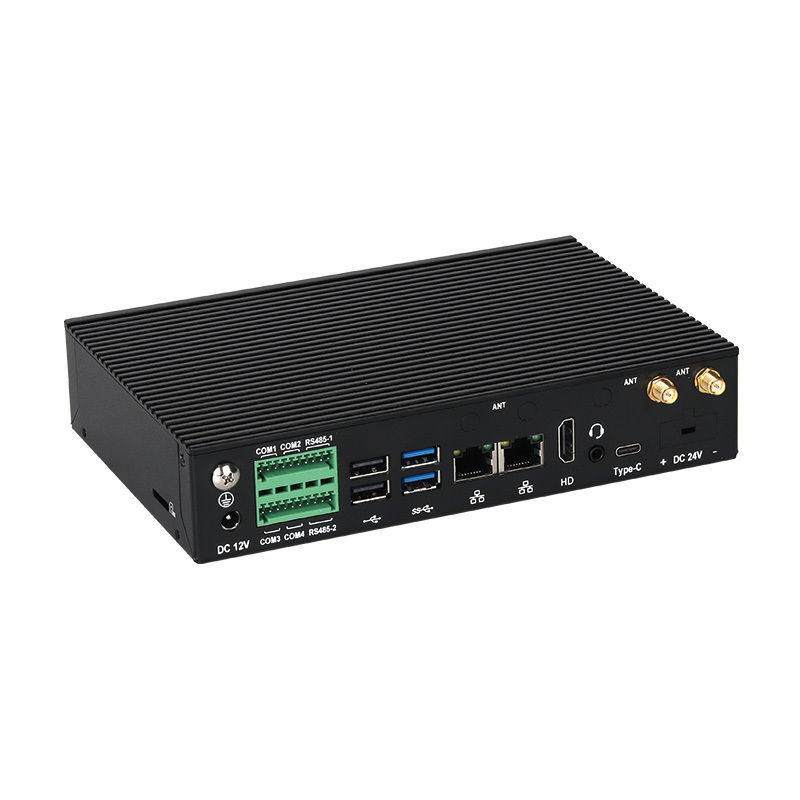

This fanless industrial mini PC is equipped with multiple interfaces to meet diverse professional needs. It has DC-12V and DC-24V power interfaces, COM interfaces, USB2.0, USB3.0, network ports, an HDMI port, an audio interface, a Type-C port, and WIFI antennas, enabling seamless connections for industrial control, automation, multimedia, and communication scenarios.
Băng hình
Băng hình
Băng hình
Băng hình
Băng hình
Băng hình
|
